Produktdatablad |
|
| Produkttype |

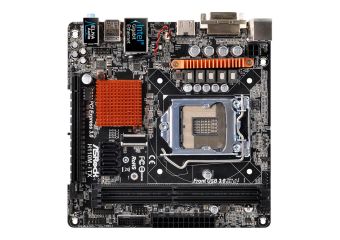

Bundkort - mini ITX |
| Chipsættype |
Intel H110 Express |
| Processor-socket |
LGA1151 Socket |
| Max antal processorer |
1 |
| Kompatible processorer |
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Maks. størrelse |
32 GB |
| Teknologi |
DDR4 |
| Bus Clock |
2133 MHz |
| Understøttet RAM-integritetskon |
Ikke-ECC |
| Registreret eller buffer |
Ikke bufferet |
| Egenskaber |
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0 |
| Maks. allokeret RAM-størrelse |
1792 MB |
| Type |
HD Audio (8-kanaler) |
| Audio codec |
Realtek ALC892 |
| Overensstemmelsesstandarder |
High Definition Audio, Premium Blu-ray audiosupport |
| Netværk controller |
Intel I219V |
| Netværks interfaces |
Gigabit Ethernet |
| Ekspansionsåbninger |
1 x CPU ¦ 2 x DIMM 288-pins ¦ 1 x PCIe 3.0 x16 (x16 mode) |
| Grænseflade (lagring) |
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder |
| Interface |
1 x PS/2-tastatur/mus ¦ 1 x DVI-D ¦ 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio linje-ud - mini-jack ¦ 1 x audio linje-ind - mini-jack ¦ 1 x mikrofon - mini-jack ¦ 1 x HDMI |
| Interne interfaces |
2 x USB 3.0 - intern stik ¦ 3 x USB 2.0 - intern stik ¦ 1 x audio - intern stik |
| Strømkontakter |
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor |
| BIOS-type (Basic Input/Output System) |
AMI |
| BIOS-egenskaber |
Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support |
| Manuelle indstillinger |
Kerne-spænding for processor |
| Hardwareovervågning |
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, detektion af åben etui |
| Sov/ Vågn |
Aktivering af LAN (wake on LAN = WOL) |
| Hardware egenskaber |
Chassis intrusion styring, ASRock Instant Flash, HDCP kompatibel, Intel Extreme Hukommelses Profil (XMP) support, 5 Phase Power Design, ASRock APP Charger, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Dual-Stack MOSFET (DSM), ASRock Fast Boot, ASRock Restart to UEFI, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 4K opløsningssupport, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock My Favorites in UEFI, ASRock Live Update |
| Udstyr inkluderet |
I/O- bagvæg |
| Medfølgende ledninger |
2 x Seriel ATA kabel |
| Med software |
Drivers & Utilities, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock Disk Health Report |
| Overensstemmelsesstandarder |
WHQL, FCC, EuP Ready, ErP Ready, ACPI 5.0 |
| Pakketype |
Detailsalg |
