| Produktbeskrivelse
|

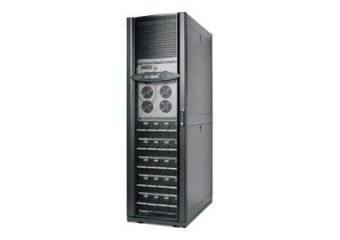

APC Smart-UPS VT ISX with 5 Battery Modules - strømarray - 30000 VA
|
| Enhedstype
|
Strømarray - ekstern
|
| Vægt
|
838 kg
|
| Indgangskabler
|
Tre faser
|
| Indgangspænding
|
AC 380/400/415 V
|
| Udgangspænding
|
AC 230/380/400/415 V ± 5%
|
| Strømkapacitet
|
30000 VA
|
| Input-stik
|
1 x hardwire 5-wire (3PH + N + G)
|
| Output-stikforbindelser
|
1 x hardwire 5-wire (3PH + N + G) ¦ 12 x strøm IEC 60320 C19
|
| Batteri
|
Blysyre
|
| Batteri formfaktor
|
Intern
|
| Antal batterier
|
5 (installeret) / 5 (understøttet)
|
| Driftstid (op til)
|
14 min ved fuld belastning
|
| Netværk
|
Ethernet 10/100
|
| Protokol til fjernadministration
|
SNMP, HTTP
|
| Farve
|
Sort
|
| Dimensioner (B x D x H)
|
60 cm x 108 cm x 200 cm
|
| Producentgaranti
|
1 års garanti
|
Produktdatablad |
|
| Enhedstype |
Strømarray - ekstern |
| Batteritype |
Intern |
| Farve |
Sort |
| UPS-teknologi |
On-line |
| Indgangspænding |
AC 380/400/415 V |
| Indgangspændingsområde |
AC 304 - 477 V |
| Med frekvens |
50 Hz |
| Indgangskabler |
Tre faser |
| Nødvendig frekvens |
40 - 70 Hz |
| Input-stik |
1 x hardwire 5-wire (3PH + N + G) |
| Detaljer om strømudgangskonnektorer |
1 x hardwire 5-wire (3PH + N + G) ¦ 12 x strøm IEC 60320 C19 |
| Udgangspænding |
AC 230/380/400/415 V ± 5% - 50 Hz |
| Strømkapacitet |
30000 VA |
| Bølgeform udgang |
Sinewave |
| Kortslutningsbeskyttelse |
Hovedafbryder |
| Antal |
5 (installeret) / 5 (understøttet) |
| Teknologi |
Blysyre |
| Run Time (op til) |
14 min. ved fuld last |
| Genopladningstid |
3 timer |
| Grænseflade til fjernstyring |
Ethernet 10/100 |
| Protokol til fjernadministration |
SNMP, HTTP |
| Interface |
1 x administration (RS-232) - 9-pin D-Sub (DB-9) ¦ 1 x administration (Ethernet) - RJ-45 |
| Medfølgende ledninger |
Serielt kabel - ekstern |
| Egenskaber |
Hørlig alarm, nødstrøm slukket, LCD-skærm, indbygget vedligeholdelses-bypass, indbygget statisk bypass, LED-indikatorer |
| Overensstemmelsesstandarder |
C-Tick, ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3 |
| Med software |
Drivers & Utilities |
| Service & Support |
Begrænset garanti - 1 år ¦ Installation |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Fugtighedsgrad ved brug |
0 - 95% |
| Lydudbredelse |
67 dBA |
| Bredde |
60 cm |
| Dybde |
108 cm |
| Højde |
200 cm |
| Vægt |
838 kg |
Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. APC's Network Management Card with temperature monitoring provides remote monitoring and management through a simple Web/SNMP interface and provides integration with ISX Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames and included startup and standard onsite warranty services. All these features make the Smart-UPS VT is the easiest UPS in its class to deploy, manage and maintain.
