| Produktbeskrivelse
|

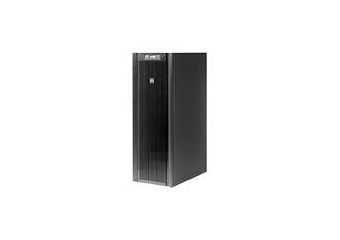

APC Smart-UPS VT 15kVA with 2 Battery Modules Expandable to 4 - UPS - 12 kW - 15000 VA
|
| Enhedstype
|
UPS - ekstern
|
| Vægt
|
415 kg
|
| Indgangskabler
|
Tre faser
|
| Indgangspænding
|
AC 380/400/415 V
|
| Udgangspænding
|
AC 380/400/415 V ± 5%
|
| Strømkapacitet
|
12 kW / 15000 VA
|
| Input-stik
|
1 x hardwire 5-wire (3PH + N + G)
|
| Output-stikforbindelser
|
1 x Terminalblok (skrueklemmer) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x hardwire 4-wire (3PH + G)
|
| Batteri
|
Blysyre kan udvides
|
| Batteri formfaktor
|
Intern
|
| Antal batterier
|
2 (installeret) / 4 (understøttet)
|
| Driftstid (op til)
|
9.7 min ved fuld belastning
|
| Netværk
|
Ethernet 10/100, RS-232
|
| Protokol til fjernadministration
|
SNMP, HTTP, HTTPS, WAP
|
| Farve
|
Sort
|
| Dimensioner (B x D x H)
|
55.9 cm x 81.3 cm x 150 cm
|
| Producentgaranti
|
1 års garanti
|
Produktdatablad |
|
| Enhedstype |
UPS - ekstern |
| Batteritype |
Intern |
| Farve |
Sort |
| UPS-teknologi |
On-line |
| Indgangspænding |
AC 380/400/415 V |
| Indgangspændingsområde |
AC 304 - 477 V |
| Med frekvens |
47 - 53 Hz |
| Indgangskabler |
Tre faser |
| Nødvendig frekvens |
47 - 70 Hz |
| Input-stik |
1 x hardwire 5-wire (3PH + N + G) |
| Detaljer om strømudgangskonnektorer |
1 x Terminalblok (skrueklemmer) ¦ 1 x hardwire 5-wire (3PH + N + G) ¦ 1 x hardwire 4-wire (3PH + G) |
| Udgangspænding |
AC 380/400/415 V ± 5% - 47 - 53 Hz |
| Strømkapacitet |
12 kW / 15000 VA |
| Bølgeform udgang |
Sinewave |
| Overspændingsafledning |
Ja |
| Kortslutningsbeskyttelse |
Hovedafbryder |
| Type |
Kan udvides |
| Antal |
2 (installeret) / 4 (understøttet) |
| Teknologi |
Blysyre |
| Run Time (op til) |
9.7 min. ved fuld last |
| Genopladningstid |
5 timer |
| Grænseflade til fjernstyring |
Ethernet 10/100, RS-232 |
| Protokol til fjernadministration |
SNMP, HTTP, HTTPS, WAP |
| Interface |
1 x administration (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) ¦ 1 x administration (RS-232) - 9-pin D-Sub (DB-9) |
| Ekspansionsåbninger |
1 (total) / 0 (fri) x SmartSlot |
| Egenskaber |
Hørlig alarm, nødstrøm slukket, LCD-skærm, indbygget vedligeholdelses-bypass, indbygget statisk bypass |
| Overensstemmelsesstandarder |
C-Tick, ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3 |
| Med software |
Drivers & Utilities |
| Service & Support |
Begrænset garanti - 1 år ¦ Installation |
| Min. driftstemperatur |
0 °C |
| Maks. driftstemperatur |
40 °C |
| Lydudbredelse |
64 dBA |
| Bredde |
55.9 cm |
| Dybde |
81.3 cm |
| Højde |
150 cm |
| Vægt |
415 kg |
| Bredde ved forsendelse |
65 cm |
| Dybde ved forsendelse |
106 cm |
| Højde ved forsendelse |
164 cm |
Smart-UPS VT offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centers, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure - wires, transformers, and generators due the Smart-UPS VT's Soft Start feature. Serviceability is greatly enhanced by user-replaceable batteries. All these features make the Smart-UPS VT is the easiest UPS in its class to deploy, manage and maintain.
